CNG 6x4 Tractor Truck, Heavy Duty Truck 420HP horse power DongFeng Heavy Truck
CNG Truck Detailed Specification:
| Model | DFV4258GP6C |
| Overall Dimension | 7560*2550*3960mm |
| Driving Form | 6x4 |
| Wheel Base(mm) | 3900+1350mm |
| G.V.W | 25000kg |
| Curb weight | 11400kg |
| Total Towing Weight | 34805kg |
| Max Speed | 89km/h |
| Wheel Track | 2040mm/ 1860,1860mm |
| Fuel Type | CNG |
| Cab | One&Half Row,3seats |
| Engine Model | Yuchai 6K1346N-60 |
| Power(Kw/HP) | 339kW/460hp |
| Maximum torque(N.m) | 2100N.m |
| Displacement(L) | 9.46 |
| Emission Standard | Euro IV |
| Transmission | Fast 12JSDX220T-B,12 forwarder gears |
| F/R axle Loading | 7000/18000kg |
| Rear Axle Ratio | 3.64 |
| Tires | 12R22.5 18PR,10pcs |
| Cylinder Total Volume(L) | 260L *8 |
| Frame Size(mm) | 280×80×8+4mm |
| Spring Number | 3/4,2/3 |

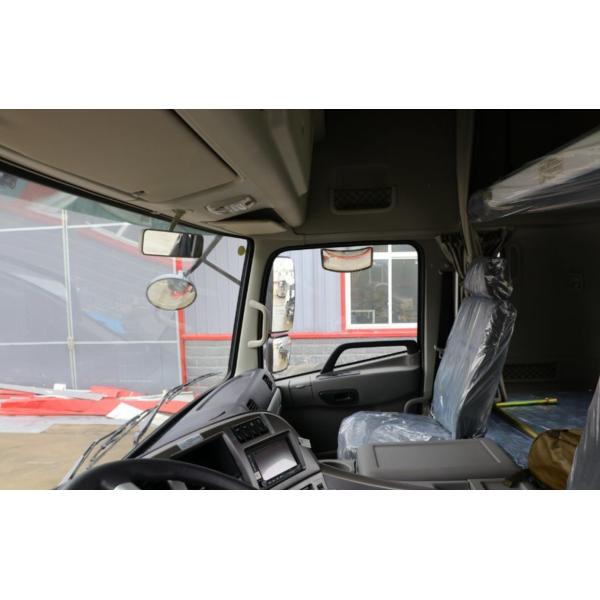

Products HD pictures:
Product Feasures:
Rear axle with large torque output and a wide ratio range. Integrated main reducer housing with light weight, high strength and good sealing. High-specification bearing, ensures reliability of transmission parts. The patented lubricating pump technology for the middle axle, effectively prevent burn-out of bearing.
Packing and Shipping:
FQA:
Q:How about the warranty?
A:It will depend on different model.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
